Stainless Steel Runner Turgo Hydro Turbine for 80m-300m Water Head with 100KW-2000KW Capacity

Gambar besar : Stainless Steel Runner Turgo Hydro Turbine for 80m-300m Water Head with 100KW-2000KW Capacity

Detail produk:

Tempat asal:	Zhejiang, Tiongkok
Nama merek:	Hydrotu
Sertifikasi:	CE
Nomor model:	Tabung Turgo, Turbin Air Turgo
Dokumen:	Enquiry sheet.doc

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Kotak Kayu (Paket Standar Ekspor)
Waktu pengiriman:	Bisa dinegosiasikan
Syarat-syarat pembayaran:	L/C,T/T

Kontak

Stainless Steel Runner Turgo Hydro Turbine for 80m-300m Water Head with 100KW-2000KW Capacity

Deskripsi

Jenis turbin:

Turbin Turgo Horisontal

Bahan pelari:

Pengecoran baja tahan karat

kepala air:

80m-300m

Kapasitas:

100KW-2000KW

Menyoroti:

Stainless Steel Runner Turgo Hydro Turbine

80m-300m Water Head Turgo Water Turbine

100KW-2000KW Capacity Impulse Turbine

Small Impulse Turbine Turgo Hydro Turbine

Turgo Water Turbine for medium to high water head hydropower projects

Product Overview

Small Impulse Hydro Turbine Turgo Turbine with Stainless Steel Runner designed for 100m water head applications. The Turgo turbine is an impulse turbine suitable for heads ranging from 50m to 250m.

Operating Principle

Water from the penstock is transformed into a high-speed jet through the nozzle. The water is directed at a 22.5° angle to one side of the runner and discharges at the other side. The dynamic force of the water flow causes the runner to rotate rapidly.

Key Components

Rotating Assembly: Includes runner, main shaft, flywheel, and water deflector
Runner: The principle component featuring three-dimensional camber vanes, hub, and outer ring to strengthen the runner and reduce wind loss
Power Transmission: Plane key system between runner and main shaft with elastic coupling
Bearing System: SKF Ball Bearing for reliable operation

Technical Specifications

Parameter	Specification
Type	Horizontal Turgo turbine with one/two nozzles
Water Head	50m to 250m
Installation Capacity	100KW to 2000KW
Runner Material	Stainless Steel (0Cr13Ni4Mo)
Generator Type	Synchronous Generator
Auxiliary Equipment	Governor, Inlet Valve, Unit Side Panel, Excitation System

Application Parameters

Water head: 50m - 250m
Capacity: 100KW - 2000KW
Runner diameter: Below 1.5m
Frequency: 50Hz or 60Hz
Generator Output: 0.4KV, 3.3KV, 6.3KV, or 10.5KV AC three phase

Key Advantages

High specific speed and flow capacity
Even efficiency curve across operating range
Simple construction and easy installation
Reliable operation with minimal maintenance
Cost-effective solution for medium-high head applications

Inquiry Requirements

For detailed quotations, please provide key parameters including net head, flow discharge, unit number, frequency, and voltage requirements.

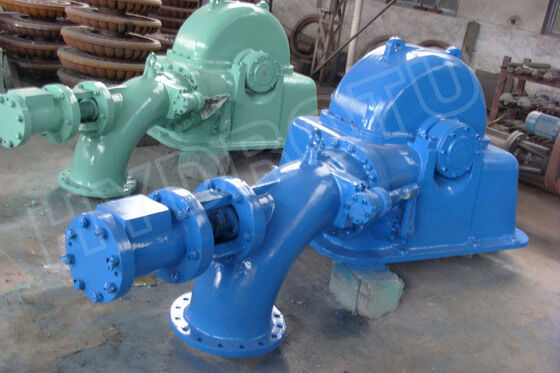

Product Images
